VAGABOND 52 CC KETCH
LOA: 52' 00"
DRAFT: 6' 06"

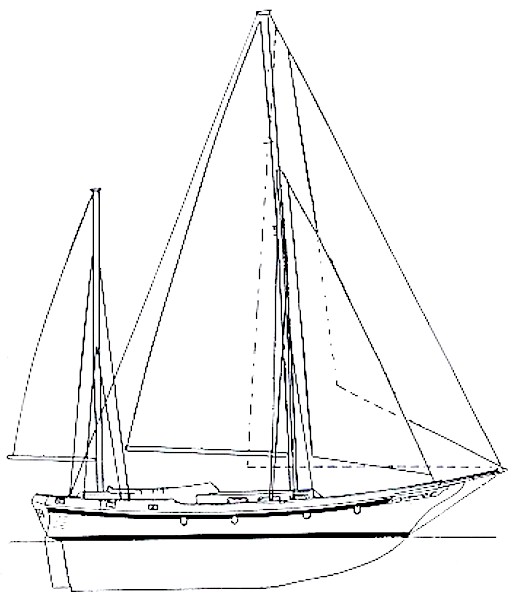

SAIL AREA: 1,273 SF.
LWL: 41' 00"
BALLAST: 19,600 LBS.
WATER CAP.: 300 GAL.
BEAM: 13' 11" DISPL: 50,000 LBS.
FUEL CAP.: 300 GAL.
items to enlarge.)

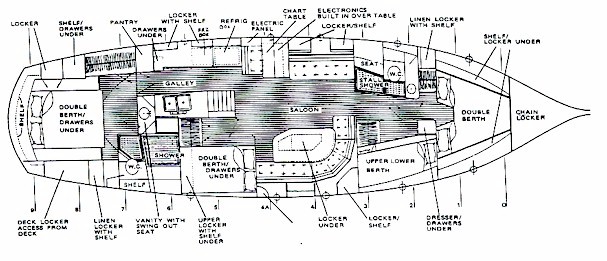

VAGABOND 52 CC

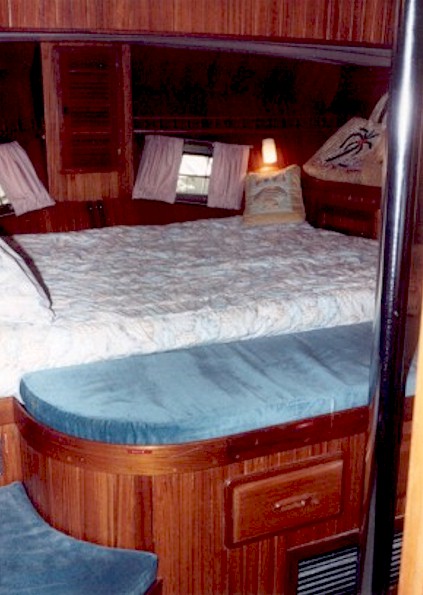

AFT STATEROOM WITH

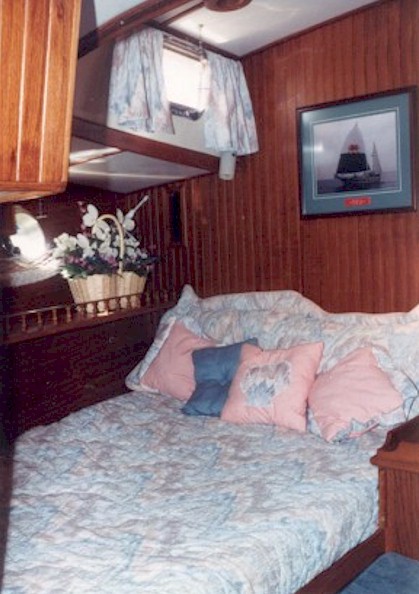

FWD GUEST STATEROOM

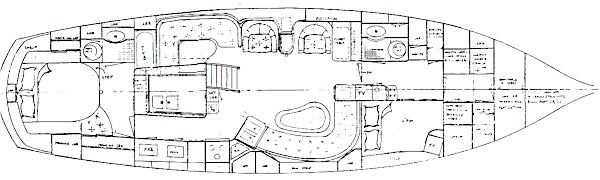

4 STATEROOM LAYOUT
The Vagabond 52 Ketch is
heavily built and beautifully finished using the best materials and workmanship
STANDARD EQUIPMENT LIST
One piece, hand laid up, solid fiberglass construction with colored sheer stripe
to match boot stripe.
SAILS: Working Jib, Stay
sail, Main, Mizzen
SPARS: Aluminum masts and
DECK: One piece, hand laid
up, fiberglass. Glassed to hull, with joint bolted and filled with foam for
water tightness & strength. All tracks and hardware through bolted. Teak
decking on cabin house and teak decks.
SS Bow pulpit w/double bronze anchor rollers
Stainless steel stern rail
Double life lines with gates P&S
SS Compass pedestal guard rail
Sea hood w/ instrument pod over
Teak hand rails on cabin top
(2) Large afterdeck boxes
Heavy teak rubrail w/ chafe strip
Chafe strip on cap rails from gates forward
SS Chafe plates at bow, and life line gates
SS Mast pulpit
(23) Stainless opening ports w/ screens
(4) Aluminum hatches
(8) SS Hawsers/chocks w/ SS mooring cleats
Salt water wash down on deck
(4) Dorade boxes with SS cowl vents
(2) 30 Amp. Shore power inlets
Full 12v. and 110v. electrical panels with
Full 12V navigation lights
(8) 12V cabin fans
(1) Manual bilge pump
(2) Electric bilge pumps
(3) Sail covers
45# Plow anchor w/ 200' 3/8” chain
USCG Gear: (6) PFD, flares, bell, horn, ring
Emergency steering tiller
ELECTRONICS & SPECIAL EQUIPMENT
system w/ full functions in navigation station and cockpit for WS, AWI, DS, KM,
GPS with cockpit repeater
VHF Marine radio telephone
Ritchie SS SP5 Compass(3) burner stove w/ oven & broiler
12V UP/DOWN windlass w/ cockpit control switches
8.0 KW Diesel generator
40,000 BTU (3 units) air conditioning/heat
Refrigerator/freezer w/ holding plates 110V &
engine driven compressors
50 Amp. Marine battery charger
135 HP FWC diesel engine
& reduction transmission installed with water separator, filters, salt water
strainer with cleanout. Wet exhaust. Full engine instrumentation.
(2) Deep cycle marine batteries (appx. 220 amp. hrs each)
Sound insulated engine & generator rooms
Bronze through hulls with seacocks and full electrolysis protection
Hydraulic steering w/ SS & teak wheel
Luxurious teak interior
w/ hand rubbed satin varnish, finely detailed. Fabric upholstery.
Teak inlaid cabin sole
Pressure water system - H&C water to both heads and galley
Hot water heater appx 8 gal. (eng. & 110V AC)
Modern convenient galley w/ double SS sink and SS lined stove compartment with
acrylic tops on counters.
Microwave space on counters.
Fresh & salt water manual pumps.
Refrigerator/freezer double boxes.
(3) Burner SS stove w/ oven.
Separate dinette area w/ shelves outboard

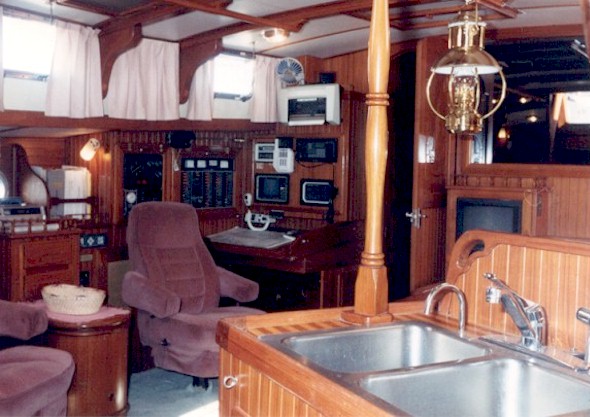

Comfortable plush salon and living area w/ mirror, shelves and lockers
Navigation station w/ seat, instrument locker and electrical panel
(2) Heads w/ showers, mirrors & holding tanks
Aft cabin with queen berth and private head w/ stall shower & electric head.
Vanity w/ hanging locker and mirror to starboard.
Double berth and private head and shower in forward cabin w/manual head. Large
drawers and lockers for abundant storage.
Delivery to Annapolis, MD or similar port, excluding commissioning.
PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
