VAGABOND 47 CC KETCH


SPECIFICATIONS                                                                                                    10/01/06
PRICE COMPLETE                                                                                                  $699,000.

    LOA: 46' 07"                             DRAFT:            5' 06"                        SAIL AREA:  1,200  SF.
    LWL: 36' 00"                       BALLAST:  12,000 LBS.                   WATER CAP.:   230 GAL.
   BEAM: 13' 05"                              DISPL:  40,000 LBS.                        FUEL CAP.:   230 GAL.

(One click items to enlarge.)

VAGABOND 47 STAYSAIL KETCH

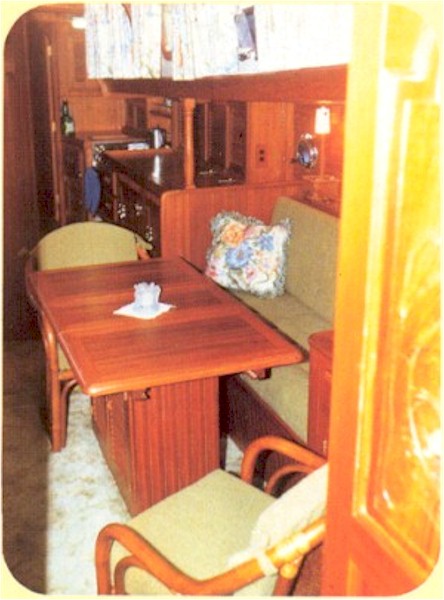

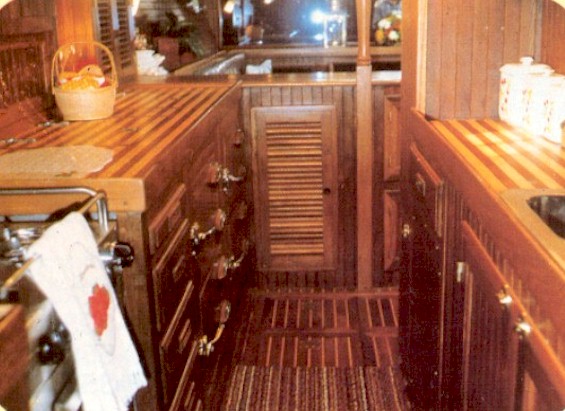

  SALOON PORT SIDE                         SALOON STBD SIDE W/ DINETTE                                 GALLEY

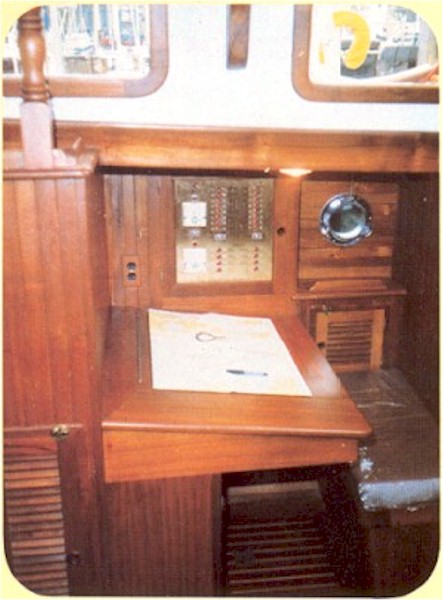

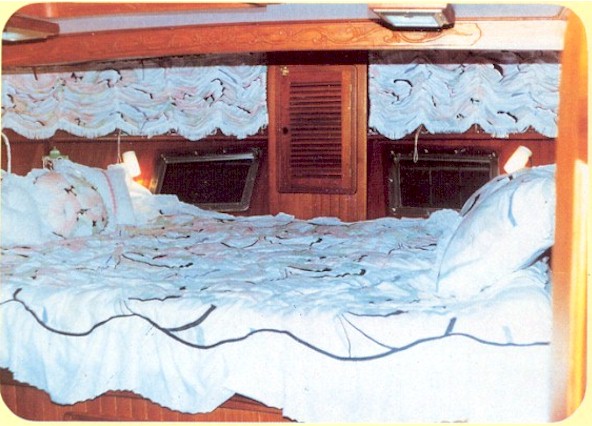

    ALTERNATE DINETTE                              NAVIGATION STATION                         AFT STATEROOM W/ A VIEW

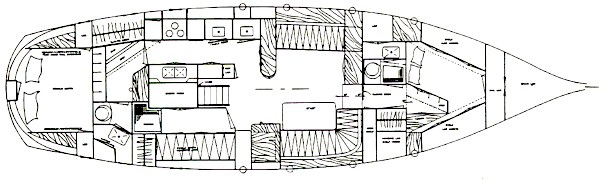

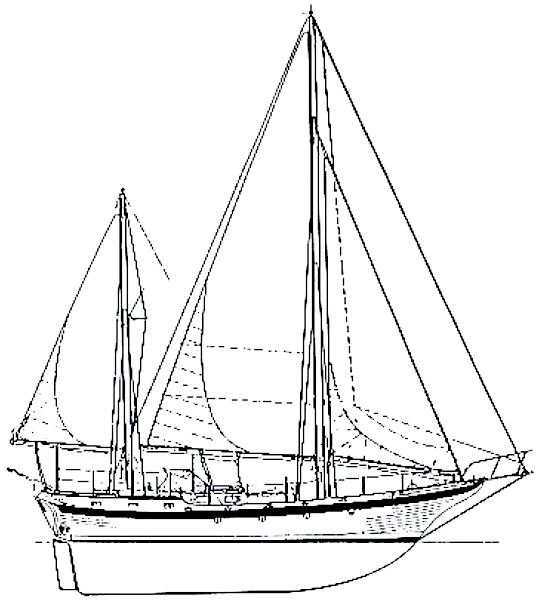

 SAIL PLAN                                                     INTERIOR LAYOUT

STANDARD EQUIPMENT LIST


HULL: One piece, hand laid up, solid fiberglass construction with colored sheer stripe to match boot stripe.

SAILS:
Working Jib, Staysail, Main, Mizzen

SPARS: Anodized aluminum masts and booms

DECK: One piece, hand laid up, fiberglass.  Glassed to hull, with joint bolted and filled with foam for water tightness & strength.  All tracks and hardware thru bolted.  Teak decking on cabin house and teak decks.

EQUIPMENT:

SS Bow pulpit w/double bronze anchor rollers
Stainless steel stern rail
Double life lines with gates P&S
SS Compass pedestal guard rail
Sea hood w/ instrument pod over
Teak hand rails on cabin top
Boom Gallows
(2) Large afterdeck boxes
Heavy teak rubrail w/ chafe strip
Chafe strip on cap rails from gates forward
SS Chafe plates at Bow, and life line gates
SS Mast pulpit
(21) Stainless opening ports w/ screens
(4) Bomar or equivalent hatches
(6) SS Hawsers/chocks w/ SS mooring cleats
Salt water wash down on deck
(4) Dorade boxes with SS cowl vents
(3) Sail covers
Emergency tiller

ELECTRONICS & SPECIAL EQUIPMENT

Digital depth finder
Digital knot meter w/ log
Digital wind speed w/ AWI
GPS with cockpit repeater
VHF Marine radio telephone
Ritchie SS SP5 Compass
(3) burner stove w/ oven
40 Amp. Battery charger
12V Up/Down windlass w/ cockpit switch

ENGINE AND EQUIPMENT

90 HP Fresh water cooled diesel engine installed with water separator/filters & heavy duty salt water strainer with cleanout.  Wet exhaust. Full engine instrumentation
(3) Deep cycle marine batteries (appx . 220 amp hrs ea.)
Sound insulated engine & generator rooms
Bronze thru hulls with seacocks and full electrolysis protection
Hydraulic steering w/ SS & teak wheel

ACCOMMODATIONS

Luxurious teak interior w/ hand rubbed satin varnish, finely detailed.  Fabric upholstery.
Teak inlaid cabin sole
Pressure water system-H&C water to both heads and galley
Hot water heater appx 8 gal. (eng. & AC)
Modern convenient galley w/ double SS sink and SS lined stove compartment with acrylic tops on counter tops
Microwave space on counter
Fresh & salt water manual pumps in galley
Large double ice boxes
(3) Burner Shipmate SS stove w/ over & broiler
Separate dinette area w/ shelves outboard
Comfortable plush settee opposite dinette w/ mirror and extra 110v. outlet forward
Navigation station w/ seat, wet locker, instrument locker and electrical panel
(4) Deck prisms for extra light
(2) Heads with showers and mirrors
Aft cabin with queen berth and private head w/ stall shower in head.  Vanity w/ hanging locker and mirror to starboard
Double berth and private head and shower in forward cabin, sliding door on forward cabin
Large drawers and lockers for abundant storage
30 Amp. Shore power inlet
Full 12v. and 110v. electrical panels with breakers and meters
12V and 110V lights and services including engine room
Full 12V navigation lights
(8) 12V cabin fans
(1) Manual bilge pump
(2) Electric bilge pumps

PRICES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
